NVIDIA H200 NVL
AI ACCELERATION FOR MAINSTREAM ENTERPRISE SERVERS
WHY BUY NVIDIA SOLUTIONS FROM KOI COMPUTERS?
As a 2025 NVIDIA Preferred Partner, Koi Computers has deployed hundreds of NVIDIA certified solutions to the Federal Government accelerating AI, Deep Learning, and other critical missions.
- Validated and optimized compute, storage, and rack-level solutions that are TAA & FIPS compliant
- System integration, on-site installation, and start-up deployment services available
- ISO 9001:2015 certified and 3rd party audited for quality assurance
- ISO/SEC 20243:2018 (Open Group) Certification for Product Integrity & Supply Chain Security
- Satisfactory or above performance ratings in CPARS – no adverse performance ever
- Successfully deployed 5 Supercomputers named to the Top500
World's Most Advanced Chip
NVIDIA Hopper architecture delivers unprecedented performance, scalability, and security to every data center.
Built with 80 billion transistors using a cutting-edge TSMC 4N process custom tailored for NVIDIA’s accelerated compute needs, H100 and H200 is the world’s most advanced chip ever built. It features major advances to accelerate AI, HPC, memory bandwidth, interconnects, and communication at data center scale.
Transformer Engine
Supercharging AI, Delivering Up to 30X Higher Performance
Hopper’s Transformer Engine uses software and custom Tensor Core technology designed specifically to accelerate training for models built from the world’s most important AI model building block, the transformer. Hopper Tensor Cores have the capability to apply mixed 8-bit floating point (FP8) and FP16 precision formats to dramatically accelerate AI calculations for transformers.
NVLink, NVSwitch, and NVLink Switch System
Seamless Communication between every GPU in a Server Cluster
The fourth-generation NVLink accelerates multi-GPU input and output (IO) across eight GPU servers at 900GB/s bidirectional per GPU, over 7X the bandwidth of PCIe Gen5. NVSwitch now supports SHARP in-network computing, previously only available on InfiniBand, which provides a 3X increase in all-reduce throughput across eight GPU servers compared to the previous-generation A100 systems.
NVIDIA Confidential Computing
Protect the Confidentiality and Integrity of Your Data and Applications
NVIDIA Confidential Computing is a built-in security feature of the NVIDIA Hopper architecture that makes NVIDIA H100 and H200 the world’s first accelerators with confidential computing capabilities.

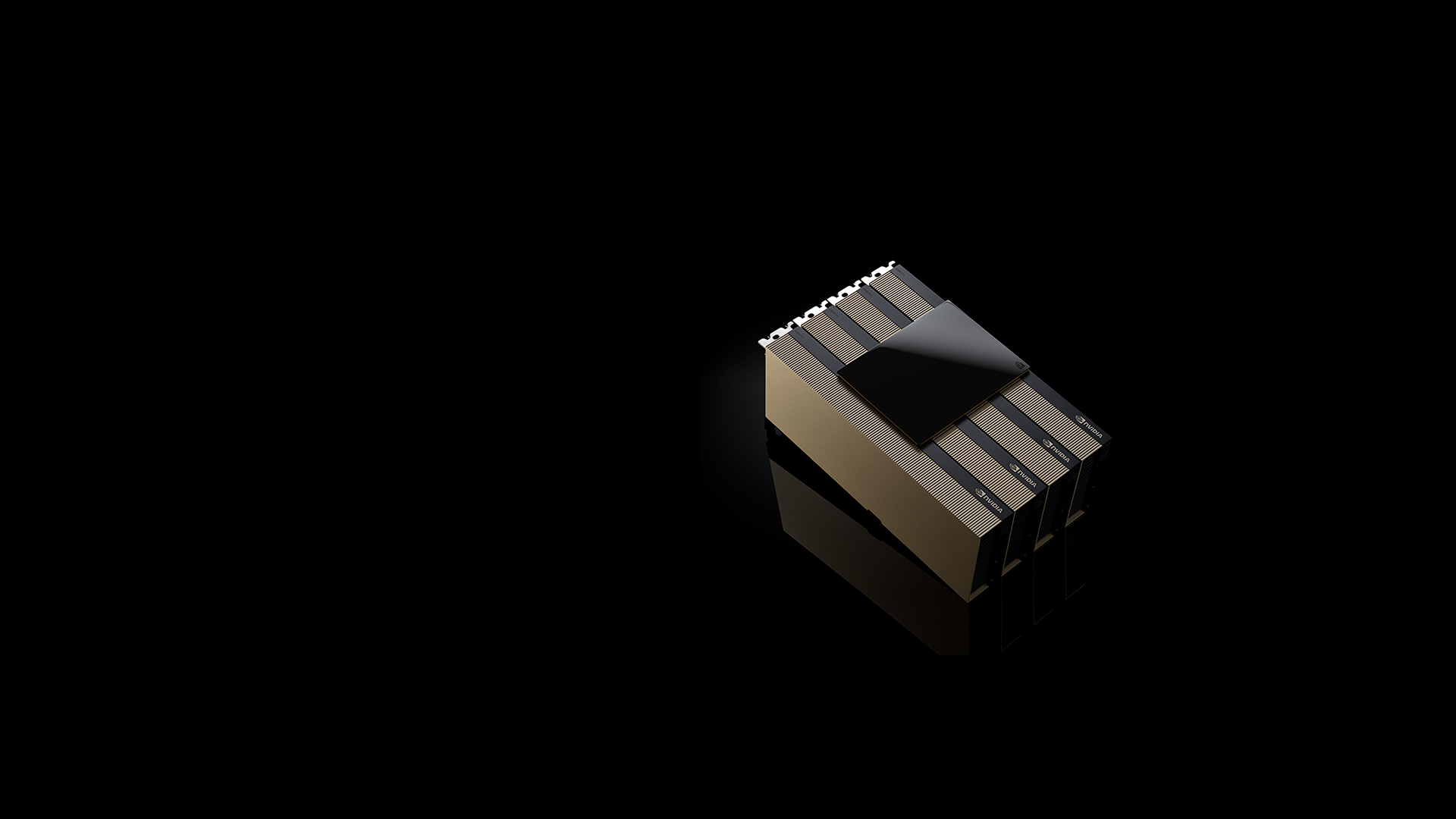

NVIDIA H200 NVL
NVIDIA H200 NVL is ideal for lower-power, air-cooled enterprise rack designs that require flexible configurations, delivering acceleration for every AI and HPC workload regardless of size. With up to four GPUs connected by NVIDIA NVLink™ and a 1.5X memory increase, large language model (LLM) inference can be accelerated up to 1.7X and HPC applications achieve up to 1.3X more performance over the H100 NVL.
XV23-ZU0-AAJ1
2U
Supports
Single Socket AMD EPYC™ 9005 processor
12 x DIMM slots (DDR5-6400)
4 x 2000W 80 PLUS Titanium redundant power supplies
2 x 2.5" Gen5 NVMe hot-swap bays; 2 x M.2 slots with PCIe Gen5 x4 interface
4 x FHFL PCIe Gen5 x16 slots for GPUs
2 x FHFL PCIe Gen5 x16 slots for NVIDIA ConnectX®-7 NICs; 1 x FHFL PCIe Gen5 x16 slot for NVIDIA® BlueField®-3 DPUs
G294-Z21-AAP2
2U
Supports
Single Socket AMD EPYC™ 9005 processor
12 x DIMM slots (DDR5-6400)
Dual 3000W 80 PLUS Titanium redundant power supply
4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays; 4 x 2.5" SATA/SAS-4 hot-swap bays
4 x FHFL PCIe Gen5 x16 or 8 x FHFL PCIe Gen5 x8 slots for GPUs
2 x LP PCIe Gen5 x16 slots for add-in cards
G294-Z22-AAP2
2U
Supports
Single Socket AMD EPYC™ 9005 processor
12 x DIMM slots (DDR5-6400)
Dual 3000W 80 PLUS Titanium redundant power supply
4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays; 4 x 2.5" SATA/SAS-4 hot-swap bays
8 x FHFL PCIe Gen5 x16 slots for GPUs (w/PCIe switches)
2 x LP PCIe Gen5 x16 slots for add-in cards
XV24-SU0-AAJ1
2U
Supports
Single Intel® Xeon® 6700/6500-Series Processors with 136 PCIe lanes
16 x DIMM slots (DDR5-6400)
3+1 2000W 80 PLUS Titanium redundant power supplies
2 x 2.5" Gen5 NVMe hot-swap bays; 2 x M.2 slots with PCIe Gen5 x4 interface
4 x FHFL PCIe Gen5 x16 slots for GPUs
2 x FHFL PCIe Gen5 x16 slots for NVIDIA ConnectX®-7 NICs
1 x FHFL PCIe Gen5 x16 slot for NVIDIA® BlueField®-3 DPUs
G294-S42-AAP2
2U
Supports
Dual Intel® Xeon® 6700/6500-Series Processors
24 x DIMM slots (DDR5-6400)
Dual 3000W 80 PLUS Titanium redundant power supply
8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
8 x FHFL PCIe Gen5 x16 slots for GPUs
2 x LP PCIe Gen5 x16 slots
G294-S41-AAP2
2U
Supports
Dual Intel® Xeon® 6700/6500-Series Processors
24 x DIMM slots (DDR5-6400)
Dual 3000W 80 PLUS Titanium redundant power supply
8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
4 x FHFL PCIe Gen5 x16 or 8 x FHFL PCIe Gen5 x8 slots for GPUs
2 x LP PCIe Gen5 x16 slots
ESC8000A-E13P
4U
Supports
Dual Socket AMD EPYC™ 9005 processor
24 x DIMM slots (DDR5-6400)
3+1 Redundant 3200W 80 PLUS Titanium power
8 x 2.5" Front Hot-swap Storage Bays (Backplane supports up to 8 x NVMe)
8 x PCIe x16 (Gen5 x16 link, FHFL) for dual-slot GPU cards
5 x PCIe x16 (Gen5 x16 link, FHHL) for NIC cards or NVIDIA BlueField®-3 DPUs
XV23-ZX0-AAJ1
2U
Supports
Dual Socket AMD EPYC™ 9005 processors
24 x DIMM slots (DDR5-6400)
3+1 2000W 80 PLUS Titanium redundant power supplies
6 x 2.5" Gen5 NVMe hot-swap bays; 3 x M.2 slots with PCIe Gen3 x2 and x1 interface
4 x FHFL PCIe Gen5 x16 slots for GPUs
3 x FHFL PCIe Gen5 x16 slots
G494-ZB0-AAP2
4U
Supports
Dual Socket AMD EPYC™ 9005 processor
24 x DIMM slots (DDR5-6400)
Quad 3000W 80 PLUS Titanium redundant power supply
2 x M.2 slots with PCIe Gen3 x4 and x1 interface
8 x FHFL PCIe Gen5 x16 slots for GPUs
2 x FHFL PCIe Gen5 x16 slots
G494-ZB4-AAP2
4U
Supports
Dual Socket AMD EPYC™ 9005 processors
48 x DIMM slots (DDR5-6400)
Quad 3000W 80 PLUS Titanium redundant power supply
12 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
8 x FHFL PCIe Gen5 x16 slots for GPUs
2 x FHHL PCIe Gen5 x16 slots; 1 x FHHL PCIe Gen5 x16 slot on the front side
3 x LP PCIe Gen5 x16 slotsx LP PCIe Gen5 x16 slots
G294-Z41-AAP2
2U
Supports
Dual Socket AMD EPYC™ 9005 processor
24 x DIMM slots (DDR5-6400)
Dual 3000W 80 PLUS Titanium redundant power supply
4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays; 4 x 2.5" SATA/SAS-4 hot-swap bays
4 x FHFL PCIe Gen5 x16 or 8 x FHFL PCIe Gen5 x8 slots for GPUs
2 x LP PCIe Gen5 x16 slots for add-in cards
G294-Z42-AAP2
2U
Supports
Dual Socket AMD EPYC™ 9005 processor
24 x DIMM slots (DDR5-6400)
Dual 3000W 80 PLUS Titanium redundant power supply
4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays; 4 x 2.5" SATA/SAS-4 hot-swap bays
8 x FHFL PCIe Gen5 x16 for GPUs (with PCIe switches)
2 x LP PCIe Gen5 x16 slots for add-in cards
CONTACT US TO CONFIGURE YOUR HPC SOLUTIONS TODAY
"*" indicates required fields
Design Services
Whether you need help strategizing or designing your next data center solution, Koi Computers can help! Our expert engineering team can plan, design, validate, and size the right solution for scalability, optimal performance, and rapid efficiency.
Integration Services
Koi Computers’ integration team can rack and stack a complete turkey solution saving time and resources for your organization. Using only quality components and a rigorous burn- in and testing process, we ensure your data center solution is reliable.
Implementation Services
Our engineer team can deliver fully integrated and tested rack solutions that are ready to deploy. Eliminate uncertainty with our team of professional technicians and installers, ensuring field reliability and consistency right out of the crate.
Lab Services
With access to our HPC Accelerate Lab and world-class Intel test tools, we can work with you to test and benchmark your application to ensure the solution meets your performance needs and lowers your total cost of ownership.
